The Blockchain:


an overview

(back to overview)



Stefano Mariani

University of Modena and Reggio Emilia

Outline

  1. Why
  2. What
  3. How
  4. Deep dive: Ethereum
  5. Deep dive: smart contracts
  6. Conclusion

Why the blockchain?


  • Backbone of digitalized ecosystems
  • Decentralized Autonomous Organizations
  • IoT secure ledger
  • Industrial perspective

      Way of dealing, essentially, with distributed asset tracking / identity management

      • prominent use case: cryptocurrency
      • money is the asset to keep track of
      • identity management is crucial

      A combination of distinct, already existing technologies

      • digital ledger
      • encryption
      • state machine replication

    Research perspective

    What can the blockchain do for distributed computing?

    Consensus, fault tolerance, smart contracts, ...

    Ethereum as the reference blockchain

    What really is a blockchain?

    BLOCKCHAIN $\neq$ BITCOIN

    The Blockchain is a general concept describing a model for distributed & decentralised computation, that may be implemented in a variety of ways, within heterogeneous application domains, and with disparate goals

    Bitcoin is one specific implementation, in one specific application domain (cryptocurrencies), with a set of specific goals (drop the bank system)

    The blockchain at a glance

    • P2P distributed ledger: shared, transparent, append-only registry of transactions
    • Secure: hash functions, digital signatures, ...
    • Replicated: no need for a trusted centralized authority
    • Consensus-based: updates approved and propagated against Byzantine failures

    Transactions

      A change of state in the blockchain: e.g. money transfer (in Bitcoin)

      Once a transaction occurs, a block is created and

      1. is validated by peers
      2. if valid becomes permanent and immutable

      Validity:

      • hash must certify transaction integrity
      • signature must match issuer identity
      • issuer's balance must be sufficient

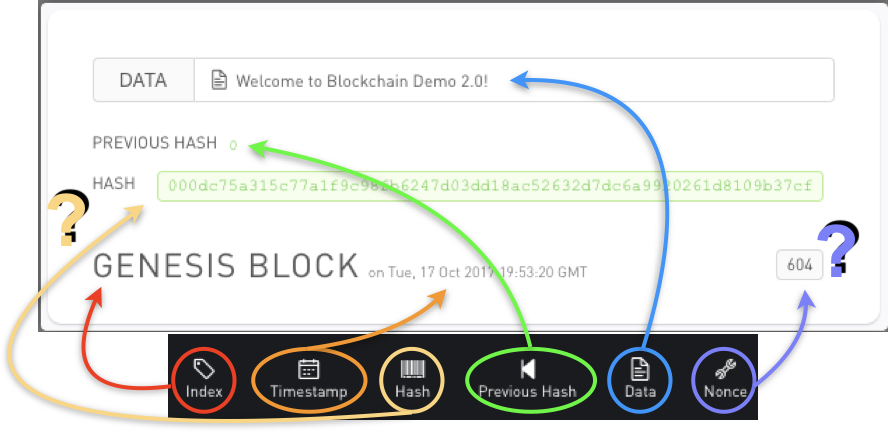

    Blocks

    Unit of information in the blockchain

    If a change is to be made, no block is altered or rewritten, a new one is created, instead, and chained (block-chain)

    Hash

      In general, alphanumeric string with some properties:

      • same data always maps to same hash
      • different data $\approx$always maps to a different hash
      • easy to compute hash from data
      • infeasible to compute data from hash

      In blockchain, valid hash must have additional properties, e.g. $N$ of leading zeroes

      • increasing $N$ raises hasing difficulty $$block\_hash = f(index, timestamp, prev\_hash, data, nonce)$$

    Mining blocks

      Finding a nonce (number) which produces a desired hash, to commit the block

      • as difficulty increases, $M$ of valid hashes decreases
      • with lower $M$, it takes more processing power / time to find a valid hash

      "With great powers come great responsibilities"

      • miners are the ones who find the nonce, hence write blockchain history (the blocks)
      • thus can harm the system, too, either by mistake or maliciously (lying)!

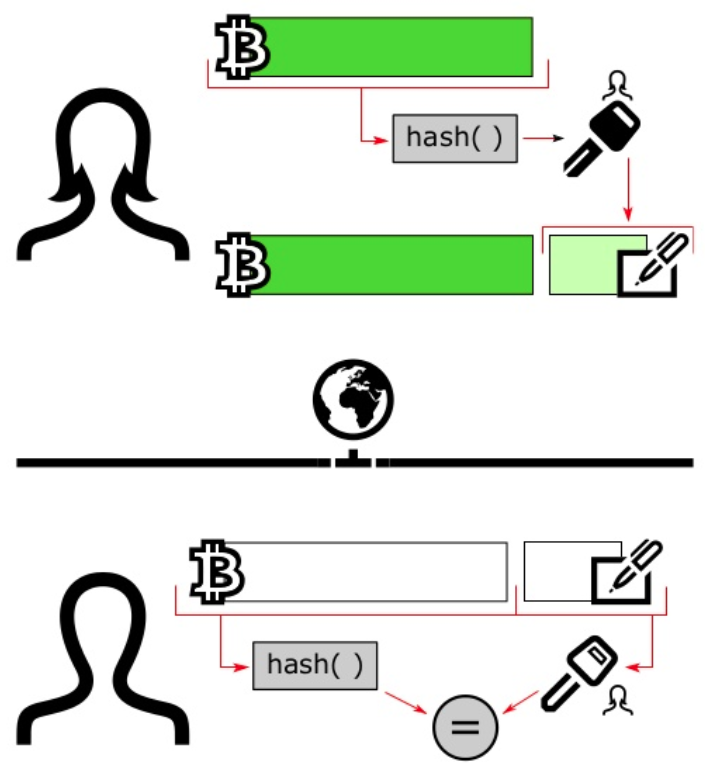

    Signature

    Cryptographic tool to guarantee:

    • integrity = info uncompromised
    • authenticity = info comes from that user
    Asymmetric, private + public key infrastructure
    • data hashed by user $U$ with private key $K$
    • data sent to user $U'$ along with $U$ public key $P$
    • $U'$ decodes data using $P$

    All together now

    [https://andersbrownworth.com/blockchain/public-private-keys/blockchain]

    Consensus

      The blockchain is made of networked nodes executing the same state machine ($\approx$program)

      Each node executes the same consensus protocol

      • all nodes must be initialised with the same initial state
      • inputs must be submitted to all replicas in the same order

      Consensus guarantees

      • consistency: propagation of updates
      • robustness: tolerance to nodes' failures

    The distributed consensus problem

      Fundamental problem in distributed computing, core to leader election, mutual exclusion, distributed transactions, clock synchronization

      • each process $p_k$ has an input value $u_k$
      • processes exchange inputs so that the outputs of all non-faulty processes become same output
      • output $v$ must be equal to at least one $u_k$

      Any consensus protocol should guarantee termination, agreement, and validity (if each $u_k = v$ then utput should be $v$)

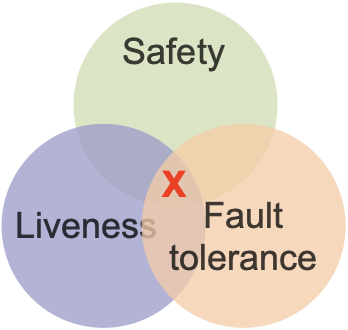

    FLP theorem:

    No failures? Easy consensus in any system

    Asynchronous network, deterministic algorithms? Consensus impossible if failures!

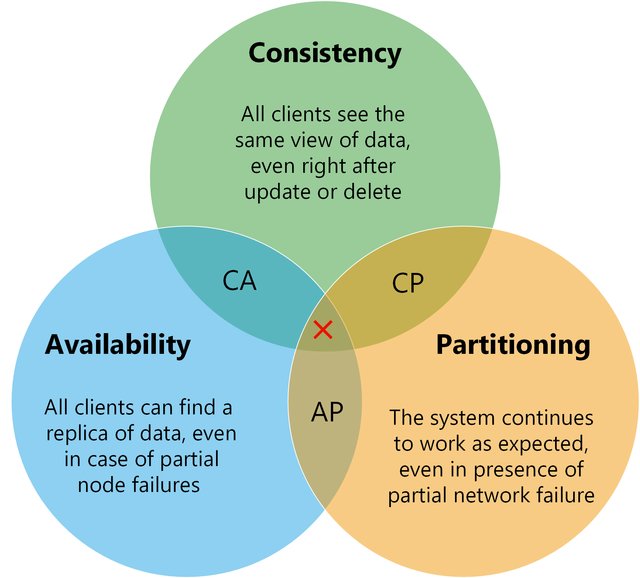

    CAP theorem

    For any distributed system, in case of failures (partitioning) choose amongst consistency and availability

    Blockchain vs. FLP & CAP

    Partitioning is intrinsic to blockchains, availability cannot be lost in many application domains, consistency is of paramount importance too, but there are ways we can have almost consistency

    Research in blockchain contributed nice novel mechanisms to have eventual consistency (mostly, "Proof-of-whatever" techniques): "sooner or later, in finite (reasonable) time, things will become consistent"

    Both problems are extremely relevant for blockchains, as its foundation is consistency without centralisation!

    See the problem

    See a solution

    [https://andersbrownworth.com/blockchain/distributed]

    [https://blockchaindemo.io]

    The blockchain or a blockchain?

      Many factors influence how a blockchain actually work:

      Permissioned vs. Permissionless

      Which consensus?

      • quorum / leader election based
      • robust to Byzantine failures or not
      • competition-based approaches

      Many others to define properties of a specific blockchain

    Byzantine failures

      Another fundamental problem in distributed computing: achieve system reliability in the presence of faulty processes

      • either by mistake (e.g. node crashing, disconnection)
      • or on purpose (e.g. hostile node)

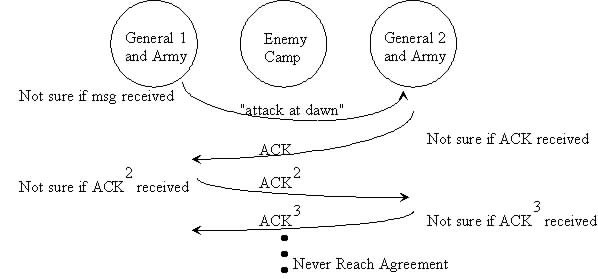

      Formalised as the two generals problem, then extended for $m \gt 2$

    Theorem proved: for any $m$, consensus achieved if there are more than $3m$ participants with at most $m$ traitors

    Why bother?

      Due to the value of the asset stored in the ledger, hostile actors have economic incentives to, e.g., rewrite blocks

      • e.g. re-order transactions for double spending
      • e.g. compromise signatures to steal assets
      • there is no central authority to recover!

      Byzantine Fault Tolerance (BFT) consensus helps against attacks:

      • (distributed) Denial of Service (transaction fees help)
      • sybil attack => impersonate N nodes (consensus help)
      • eclipse attack => partition network, opens to other attacks (e.g. double-spending)
      • routing attack => tamper with messages (hash & signatures help)

    How does the blockchain work?

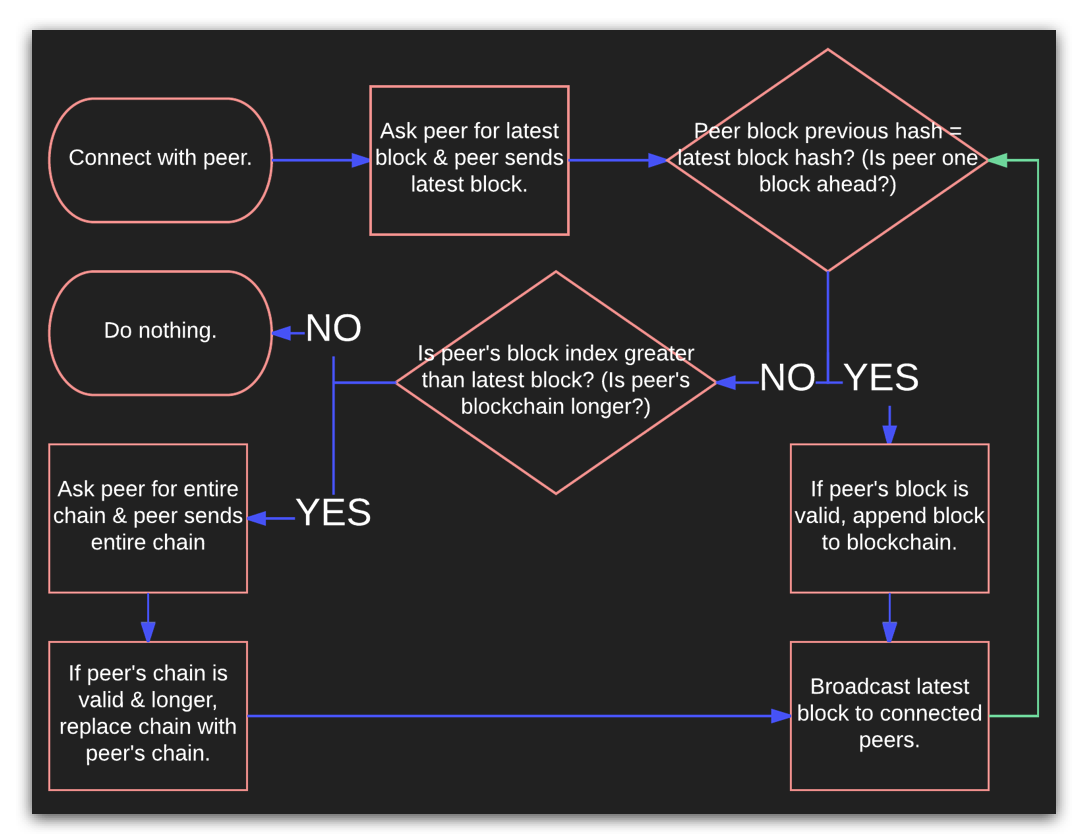

    Blocks lifecycle

    1. A user issues a transaction
    2. Signs it with private key $K$
    3. Server node propagates the transaction to neighbours
    4. The transaction is validated by peers and dropped if invalid
    5. Valid transactions are eventually executed producing a temporary block
    6. Eventually, if the consensus protocol confirms the block, it is appended to the blockchain

    See it working: [https://blockchaindemo.io/]

    BFT

      When adding a new block, it needs to meet these requirements (at least):

      • index = latest block index + 1
      • previous hash field = latest block hash field
      • hash meets difficulty requirement (e.g. no. of leading zeroes)

      Hence, changing a committed block leads to a cascade of invalid blocks

      1. its hash changes
      2. previous hash field of next block changes...
      3. ...hence its own hash changes, and so on!

      An attacker should:

      • alter transactions in one block and re-mine that block
      • re-mine each subsequent block
      • do so while impersonating many nodes (consensus!)
      • do so fast enough to not let the blockchain evolve in the meantime (otherwise, more blocks to re-mine)

    Why be hostile? Why be nice?

    In both cases: M. O. N. E. Y.

    • hostile: assets stored on blockchain have value, hence changing ownership is appealing
    • nice: miners are rewarded / compensated for their job, usually with a given amount of cryptocurrency

    Setting aside the blockchain from a native cryptocurrency is far from trivial and currently subject of active research!

    Could be a whole topic on its own...

    Let's clarify

    [https://youtu.be/BuTj9raHQOU]

    Deep dive: Ethereum

    Most of blockchain-related technical literature focus on a specific implementation

    Until now we've been general, now we must choose a reference blockchain

    Ethereum: probably the most mature, studied, and documented blockchain feturing smart contracts

    "[...] alternative protocol for building decentralized applications [...]"

    "Ethereum does this by building what is essentially the ultimate abstract foundational layer: a blockchain with a built-in Turing-complete programming language, allowing anyone to write smart contracts and decentralized applications where they can create their own arbitrary rules for ownership, transaction formats and state transition functions."

    "Smart contracts, cryptographic 'boxes' that contain value and only unlock it if certain conditions are met, can also be built on top of the platform, with vastly more power than that offered by Bitcoin scripting because of the added powers of Turing-completeness, value-awareness, blockchain-awareness and state."

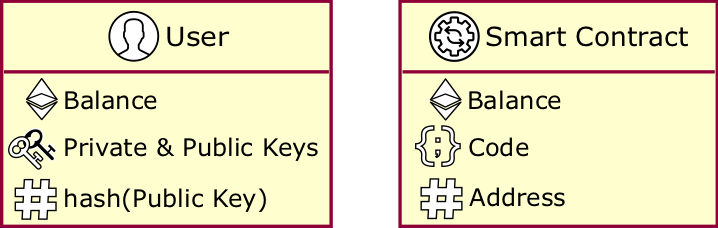

    Not only users

    Ethereum admits also smart contracts to issue transactions, besides users

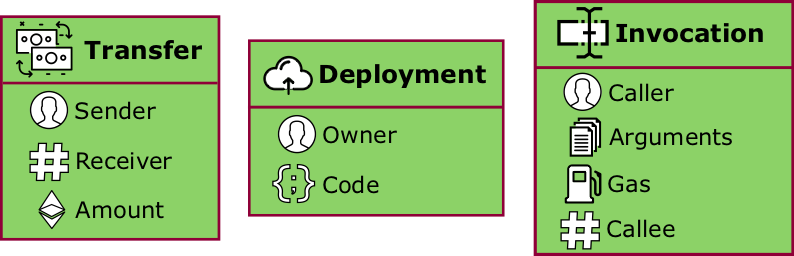

    Transactions

    • Value transfers
    • Deployment of a smart contract (SC)
    • Invocation of a SC

    Consensus

    • Agreement on starting state
    • Agreement on ordering of input transactions
    • Tolerant to Byzantine failures: Proof-of-Work (PoW)

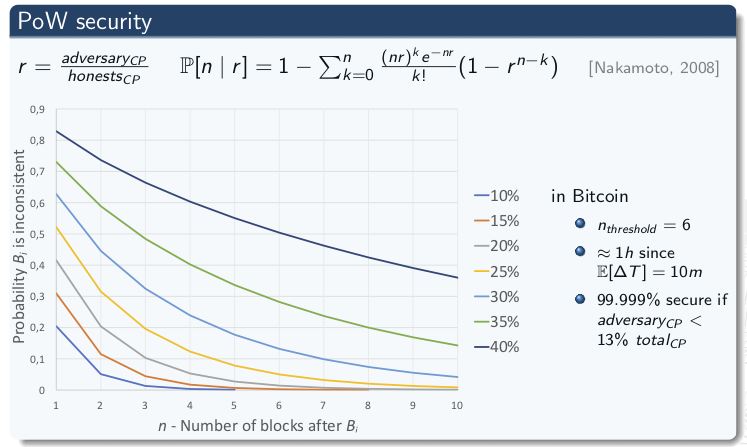

    PoW

      The first miner to find the nonce of a block propagates its proof and, if confirmed by others, gets the right to publish the new block and a reward (a transaction fee charged on the issuer)

      The specific protocol is GHOST, which provides probabilistic eventual consistency

      • inconsistencies can temporarily arise in the form of "forks"
      • the protocol takes care of making one eventually prevail on the others
      • probability of block $B$ to be inconsistent $\rightarrow 0$ exponentially with the amount $N$ of blocks after $B$ (confirmations)

    Forks

      Common in blockchains since they run asynchronously: network delays => peers may see different blocks seemingly mined at same time, or same block at different times

      Probability that two distinct sub-nets find blocks $\approx$simultaneously vanishes with the length of the chain

      If an hostile sub-net create blocks faster than the nice one, it can rewrite history to overtake the honest chain

      Faster $\approx$ hostile sub-net is "bigger" (in computatinal terms)

    RAFT (Hyperledger Fabric)

      Consensus protocol easy to understand and implement (verifiability)

      • leader election
      • log replication
      • liveness maintainance + self-repair (= safety)

      By contrast, GHOST is quite convoluted and implementations usually have some degrees of freedom

      However, RAFT is not BFT

    See it in action: http://thesecretlivesofdata.com/raft/

    Deep dive: smart contracts

      Smart contracts are arbitrary computations executed on the blockchain

      • stateful: encapsulate their own state
      • user-defined: any user may publish a smart contract
      • reactive: only activate on external input (transactions)
      • immutable: smart contracts code cannot change
      • secured: cryptographic measures as for blocks and transactions
      • deterministic: always same outputs if given the same inputs and state
      • decentralised: no centralised coordinator, concurrent execution

    State machine replication (SMR)

    Each node in the blockchain network should behave the same, according to the protocol => each node executes the same "program" (the "blockchain application")

    What if we replicate a program implementing an intepreter for other programs?

    Each node of the blockchain executes arbitrary programs published through the blockchain API => Universal SMR

    The blockchain becomes sort of middleware for decentralised computations!

    SC lifecycle

      Deployment stage:

      • user instantiates a SC by publishing its source/byte-code (deployment transaction)
      • once transaction confirmed, the SC instance is running on all blockchain nodes (replicas)

      Invocation stage:

      • users trigger SC with invocation transactions (and providing input)
      • eventually, each replica receives the transaction and executes it
      • a new block with the SC output is eventually confirmed by the consensus protocol (hence committed)

    Check out, design, and test SC for free on Ethereum Remix IDE

    Follow instructions at https://github.com/ethereum/remix-workshops

    Conclusion

    Main takeways

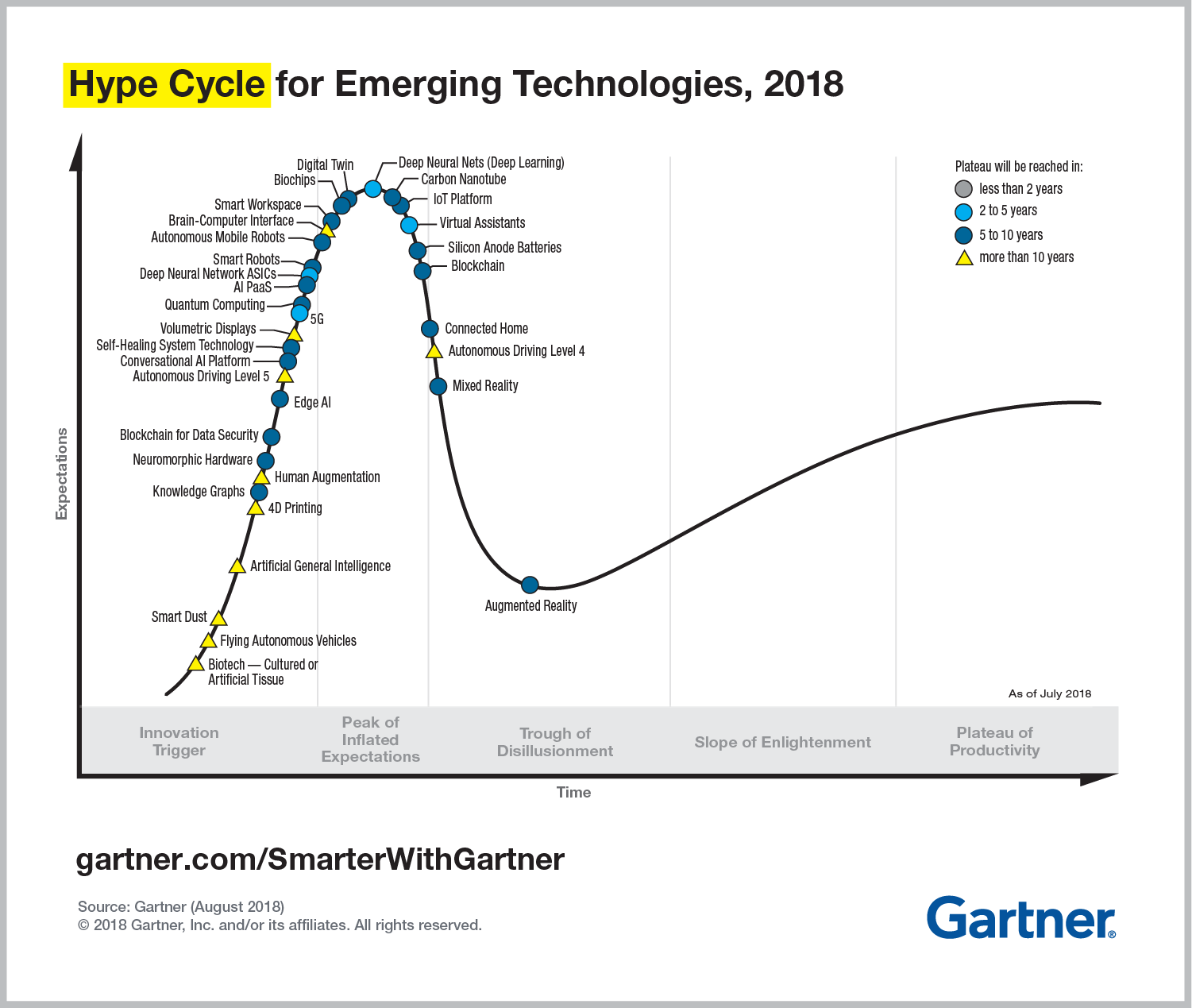

    Hype aside, the blockchain truly is potentially disrupting: forget about cryptocurrencies, think about Electronic Medical Records auditing, supply chain tracking, etc.

    Consensus plays critical role in defining properties: strength of eventual consistency, BFT or not, role and power of miners

    Smart Contracts are still to be fully explored...

    Personal interests

      From the standpoint of distributed systems and artificial intelligence, what is the expressiveness of the blockchain?

      1. can we do something else besides asset tracking and identity management?
      2. can we design more powerful smart contracts?

      1 --> Blockchain-based coordination

      2 --> Agent-oriented smart contracts

    Blockchain-based coordination

    Can we implement Linda in Ethereum?

    Goal: bring the blockchain to MAS world, gaining "for free" its safety and security properties

    Blockchain-Based Coordination: Assessing the Expressive Power of Smart Contracts

    Agent-oriented smart contracts

    Can we design and implement smart contracts as agents?

    Goal: bring agents to the blockchain world, gaining "for free" their greater expressiveness

    Towards Agent-Oriented Blockchains: Autonomous Smart Contracts

    Tenderfone blockchain (developed as master thesis!)


    Thanks

    for your attention



    Questions?


    Stefano Mariani

    University of Modena and Reggio Emilia

    Useful resources
